Agricultural equipment Grading round grain rice sifting machine
Product description

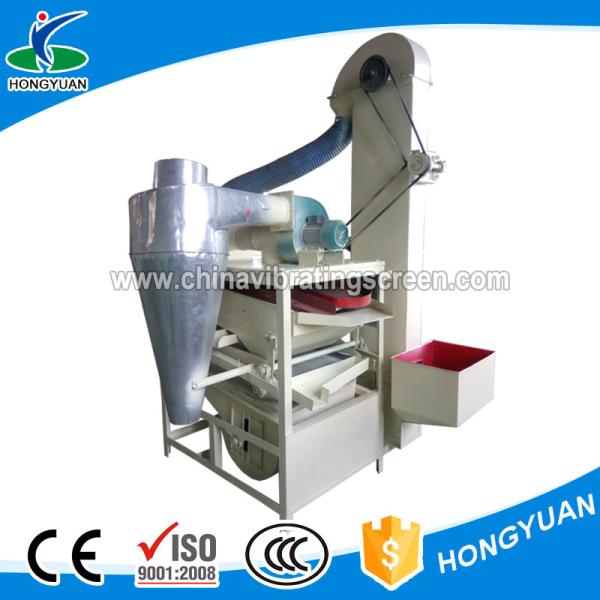

Cleaning all variety of beans screening machine is the new model cereals and beans cleaning sorting machine which combine bucket elevator for auto feeding and the gravity platform, sieving screen, cyclone dust collector for sieving/ cleaning/ sorting/ to remove the impurities and coarse from the grain cereals so that make it clean. It is the blowing type gravity separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing,selling or milling.
The gravity separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The grain seed cleaning rate could be at 99%, it is beneficial and helpful for both selling at market or milling procedure.
| Model | Capacity | Machine Size | Motor Power |
| HYL-45 | 1 ton | 1150*910*1880mm | 2.2KW+0.75KW |
| HYL-65 | 3 ton | 1550*1100*1980MM | 3KW+0.75KW |
| HYL-100 | 5 ton | 1850*1200*2180 | 4KW+1.1KW+0.75KW |
Main Structure Features
Of ------ Separating same shape different gravity seed cleaner machine
- Easy Feeding Way: It can save the manpower by the extra vertical bucket elevator for feeding device
- Gravity Separator: Separate the grain seed by different weight
- Double Sieving Screen layers: Sorting the grain seed by different size
- Air blower: Blowing the impurities out
- Cyclone Dust Collector: Collecting the dust so that improve the cleaning rate
Certifications
Detailed Images
| Gravity Platform | Cleaning outlet | Inlet |
| Separate the grain by different weight | output the grain cleaned | Put in grains that need to be cleaned |
Related Products
Flexible Grain Suction Screw Conveyor
TD 75 Fixed Horizontal Belt Conveyor
Packing
For more information on Agricultural equipment Grading round grain rice sifting machine just contact me freely by:
E-mail: cnhongyuan at chinavibratingscreen.com
Mob/Whatsapp/Wechat: +8615560250277
Contact person:JULY
1.What kind of grain do you want to clean?
2.What is your capacity per hour?
3. What is your local electricity?
|
|
Agricultural equipment Grading round grain rice sifting machine Images
|
