Small volume and facilitating moving domestic spiral conveyor
Product Application
Small volume and facilitating moving domestic spiral conveyor is one kind of bulk grain conveyor adopt the motor power for truck loading and grain elevator purpose. With the feature of small cubage and easy to carry, it is universally used by the family farm. -
It has the feature of small volume, large capacity, convenient to carry.
-
The power source can adopt the single phase which is applied for home use.
-
Main power saving ideal machine for truck loading.
Detailed Images
Material
Soft spiral is to adopt a kind of manganese steel, the British imported material, hardness, elasticity, abrasion resistance is good, and smooth outer edge through special processing, won't cause harm to the pipe, the pipe is premium PVC material, keep elastic, all the year round can be arbitrary curve.And add the wear and extend the life of the pipe.
Working Video
From this video you will know how does this machine work.
Specifications
| Model No. | Length (Meters) | Pipe diameter | Loading Capacity(t/h) | Motor phase-power(kw) | Installation | Structure | Conveying height |
| XL-100-6 | 6 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-8 | 8 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-10 | 10 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-12 | 12 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-6 | 6 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-8 | 8 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-10 | 10 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-12 | 12 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
Of course, we can also customize product according to your needs.
Special Notes
1.Three phase motor cannot reverse running.
2.Please do not let the machine running without loading;
3.Please do let the machine running with loading;
4.Please do not let the machine do the idling running.
Packing & Delivery
Packing in Ply wooden Box
Packing Size:1200*1200*500mm
Gross Weight: 180kgs

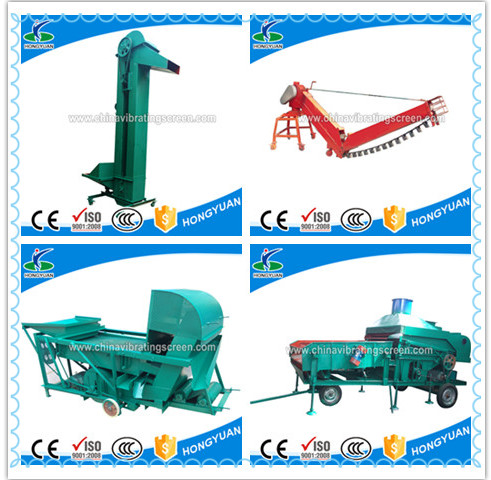

Related Products
