5T a hour protable automatic flexible auger coneyor belt machine
Product Description
5T a hour protable automatic flexible auger coneyor belt machine is one kind of bulk grain conveyor adopt the pneumatic and motor power for truck loading and grain elevator purpose. With the feature of small cubage and easy to carry,it is universally used by the family farm. It is mainly applied for collecting of wheat,corn,paddy,cereal,and any other similar granules etc.With single phase motor power,it can loading the large capacity with low energy consumption and easy to use at home.
Product Features
5T a hour protable automatic flexible auger coneyor belt machine is easy to carry and operated and is one convenient portable grain inhaling suction equipment.
- It has the feature of small volume, large capacity, convenient to carry.
- The power source can adopt the single phase which is applied for home use.
- Man power saving ideal machine for truck loading.
- Large capacity at 10-15 ton/h
- Customized length is supported(6meters,8meters,10meters is available)
- Lifting height is 3-4 meters
Product Details
The Pipe material is premium PVC Material.
The screw blade is Mangancese steel.
Technic Dimensions
| Model No. | Length (Meters) | Pipe diameter | Loading Capacity(t/h) | Motor phase-power(kw) | Installation | Structure | Conveying height |
| XL-100- 6 | 6 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 8 | 8 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 10 | 10 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100- 12 | 12 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 6 | 6 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 8 | 8 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 10 | 10 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160- 12 | 12 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m
|
Working performance

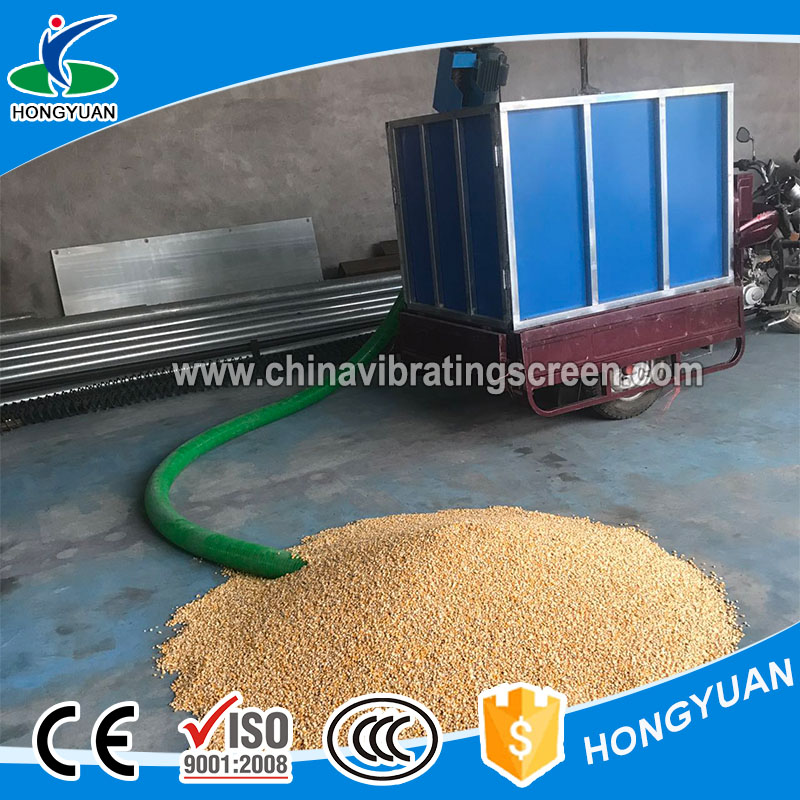

5T a hour protable automatic flexible auger coneyor belt machine is easy to carry and operated and is one convenient portable grain inhaling suction equipment.
click the picture to watch the video

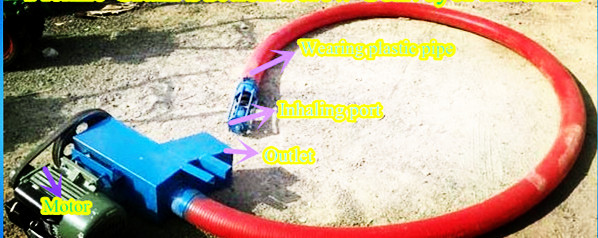

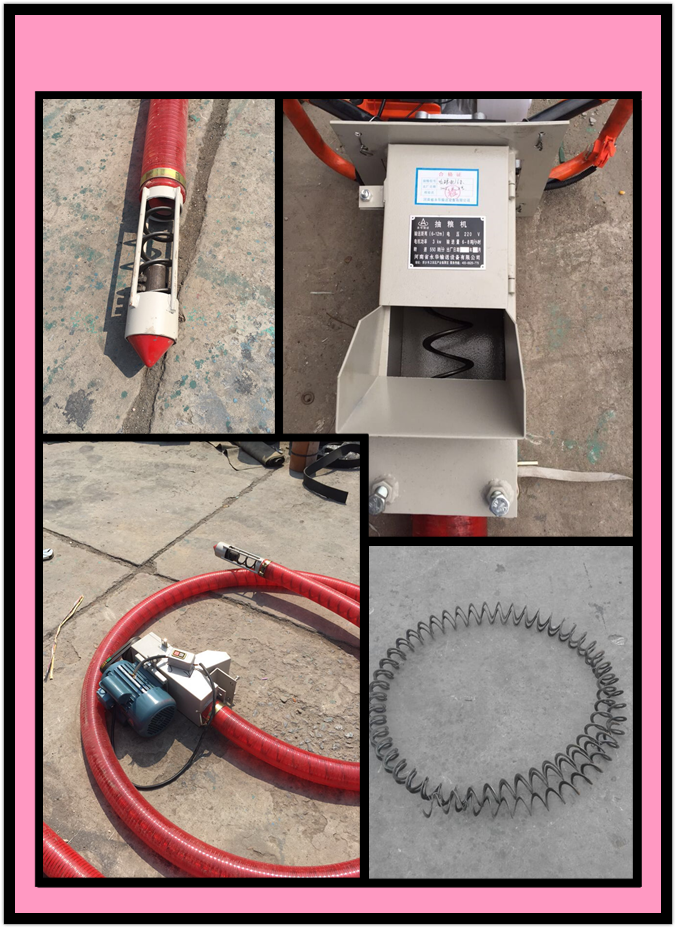

Detailed Images
We are committed to the best material to produce strict quality.Besides The Pipe material is premium PVC Material,The screw blade is Mangancese steel.

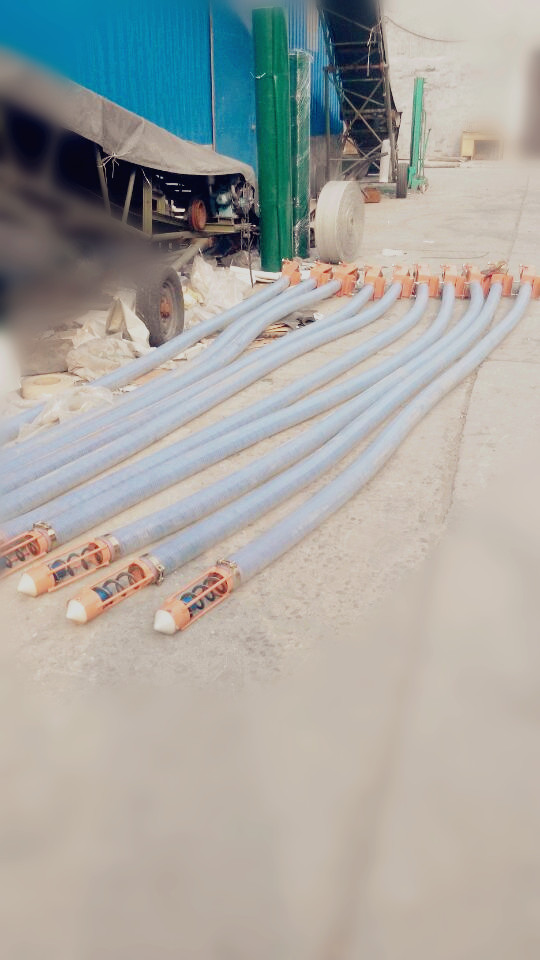

Packing&Transport
our company is carrying the fastest and most suitable transportation.
packing in Plywooden Box
