Light and handy large diameter hoses feed with feed screw feed screw conveyor
Product Description
Product Application
Light and handy large diameter hoses feed with feed screw feed screw conveyor is a new designed for grain suction, entrucking, stack transfer and storage in village.It has the features of small area, light weight, easy movable, high effeciency and low rate of brokage. the small suction machine is widely used for many places with safty and relibality. such as individual farmer, grain professional farmers and agricultural cooperative.
Main Parameters
| Model No. | Length (Meters) | Pipe diameter | Loading Capacity(t/h) | Motor phase power(kw) | Installation | Structure | Conveying height |
| XL-100-6 | 6 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-8 | 8 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-10 | 10 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-12 | 12 | 100mm | 5-8 | Single phase-220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-6 | 6 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-8 | 8 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-10 | 10 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-12 | 12 | 160mm | 15-20 | Three phase-220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
Main Features
Flexible screw auger conveyor for granule and seeds is easy to carry and operated and is one convenient portable grain inhaling suction equipment.
- It has the feature of small volume, large power, convenient to carry.
- The power source can adopt the single phase which is applied for home use.
- Main power saving ideal machine for truck loading.
- Large capacity at 10-15 ton/h
- Customized length is supported(6meters,8meters,10meters is available)
- Lifting height is 3 meters

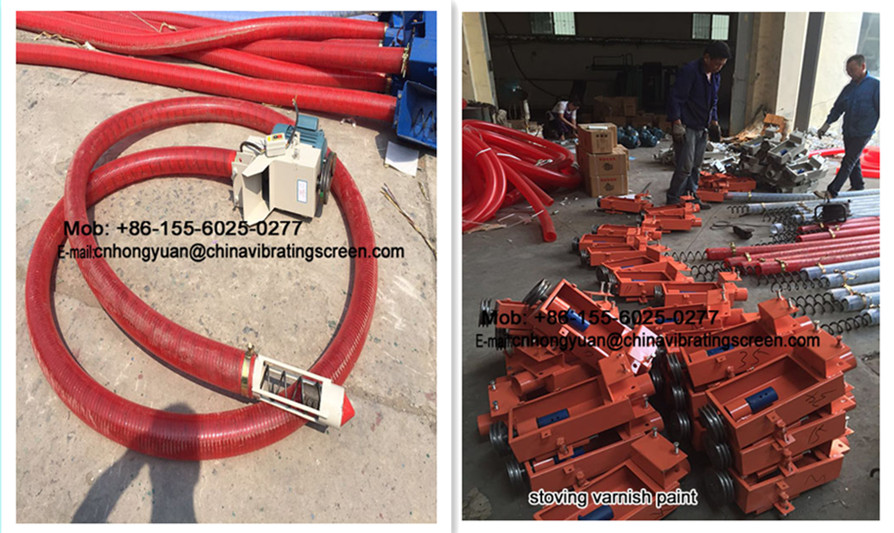

Detailed Images
Machine Parts

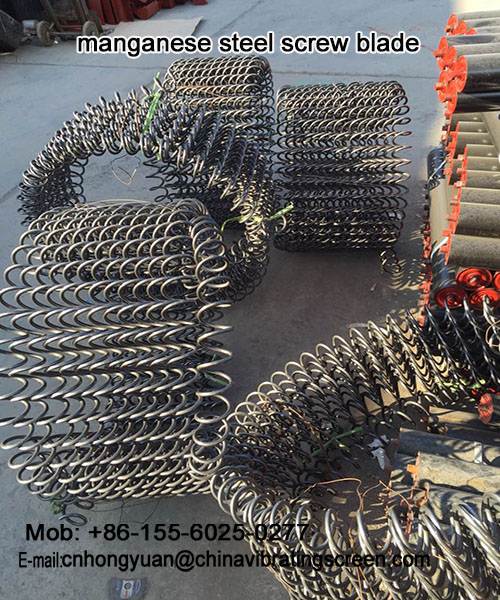

Name: Screw blade
Brand: Hongyuan
Original: China
Large capacity at 5-20ton/h

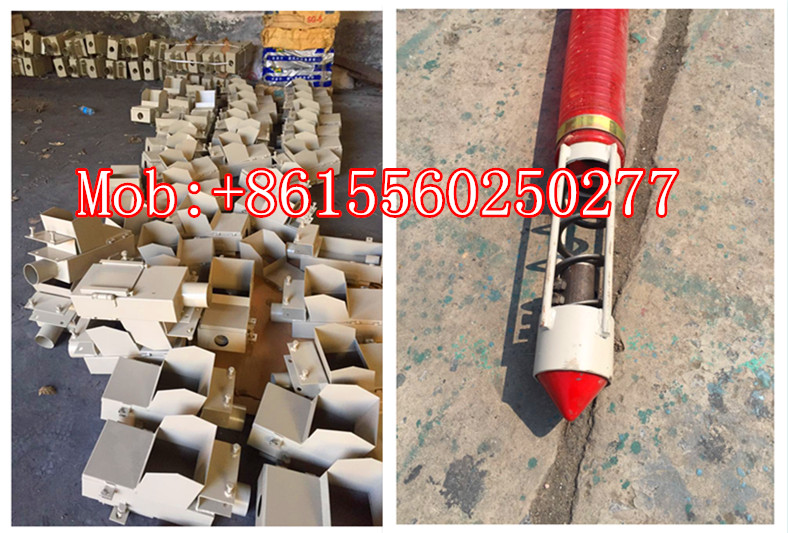

Name: Inlet
Brand: Hongyuan
Original: China
It has the feature of small volume,
large power, convenient to carry.

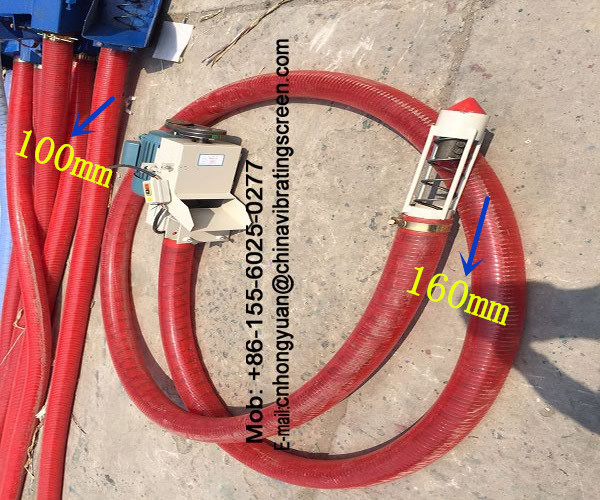

Name: Plastic pipe
Brand: Hongyuan
Original: China
Customized length is supported(6meters,8meters,10meters is available)

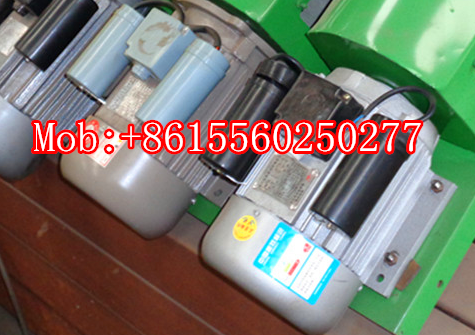

Name: Motor
Brand: Hongyuan
Original: China
Single phase-3kw at 100mm pipe diameter, 5-8t/h
Three phase-4kw at 160mm pipe diameter, 15-20t/h

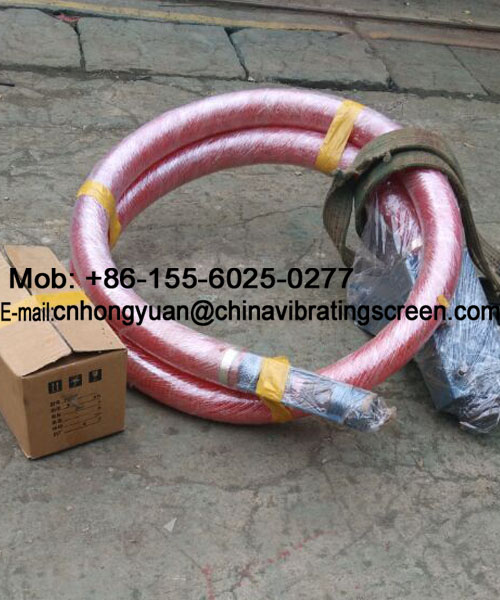

Packing&Delivery

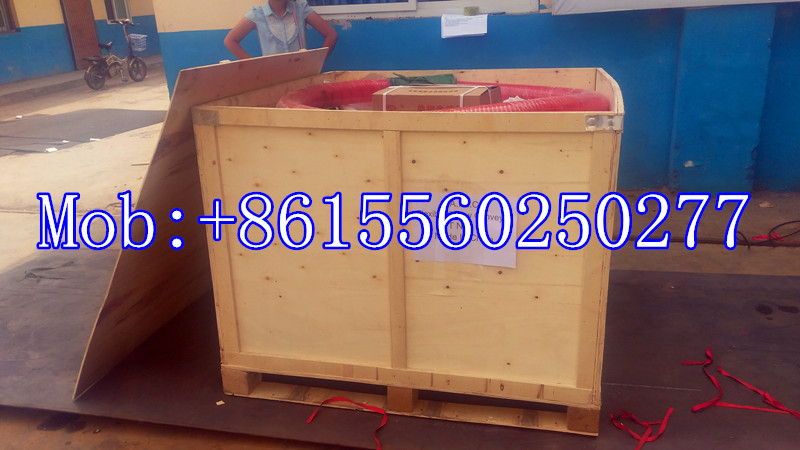

Packaging:The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use it for packing or pack it according to customers special request.
Packaging Size:1200(L)*1000(W)*600(D)
Related Products

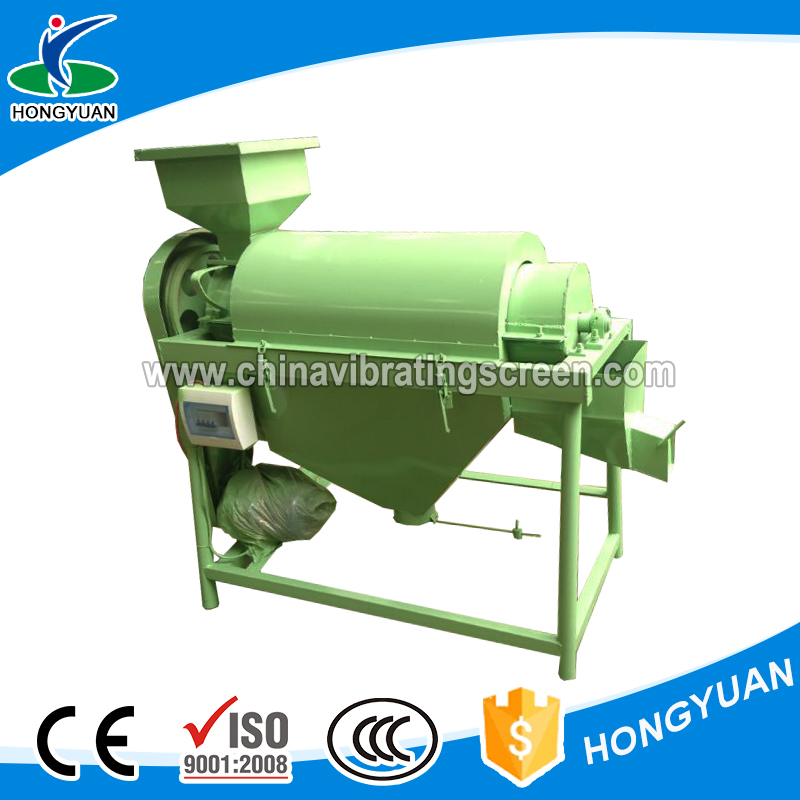

Grain Polishing Machine.
Make Grain Beans Bright and Clean.

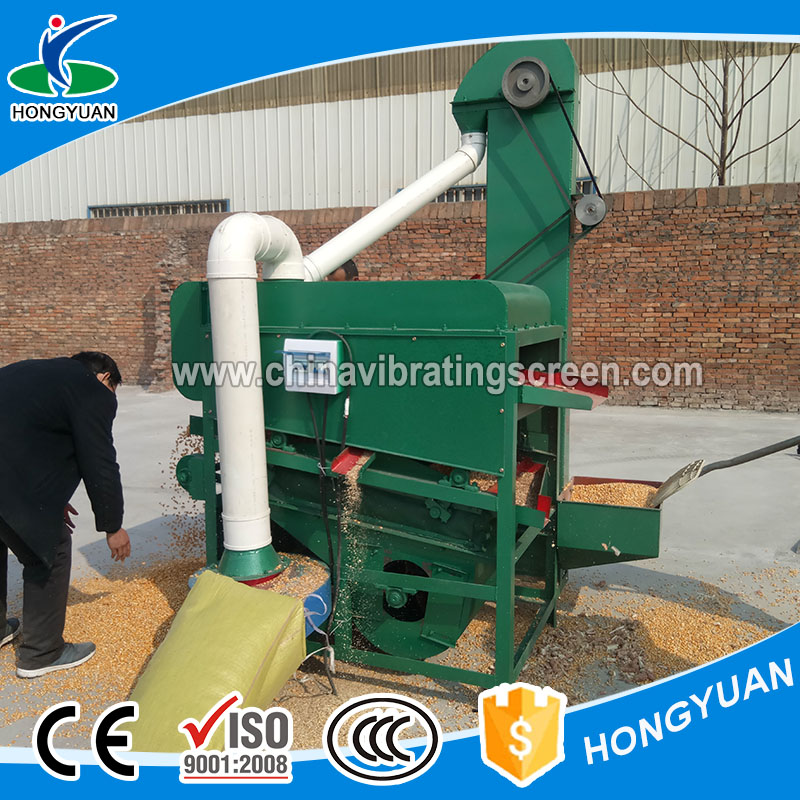

HYL-25 Grain Cleaner
