Supporting customized length truck loading wheat
auger screw feeder
Application:
Supporting customized length truck loading wheat auger screw feeder is specially for rural transport, loading, pour the crib, storage equipment, and design a small has small volume, light weight, easy to move, grain, high efficiency, lower breakage, occasions, widely used, safe and reliable characteristics, very suitable for individual farmers, food profession and agricultural cooperatives.Also can be used for farms, feed mills, food factory, plastics factory conveying makings of the occasion.May transport wheat, soybean, corn, rice, sorghum, plastic, resin, rice and other grains.Can be horizontal, oblique way transmission.
Details:
From the following details you can better understand our products.

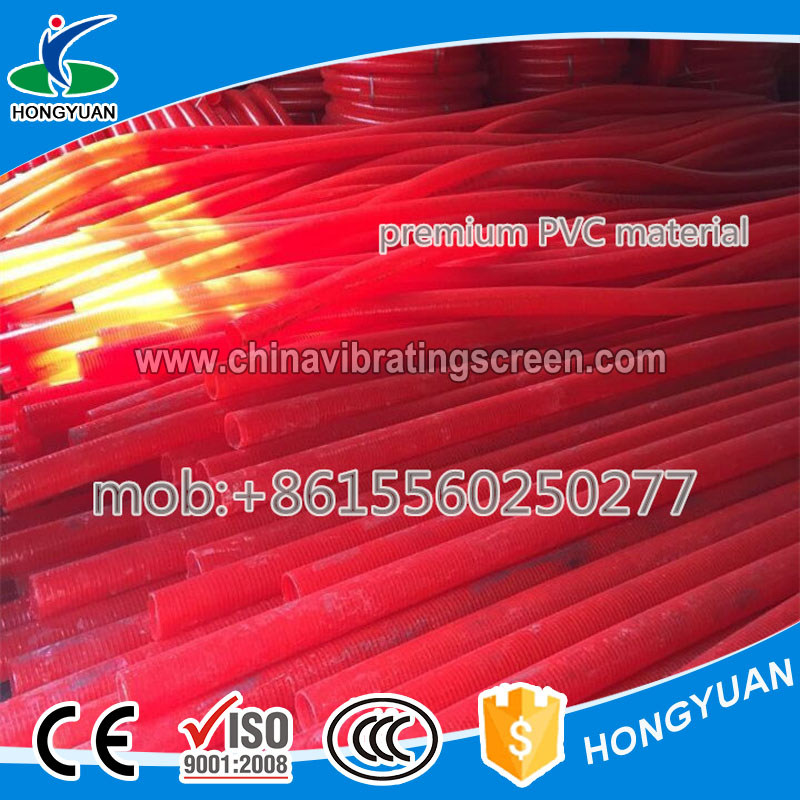

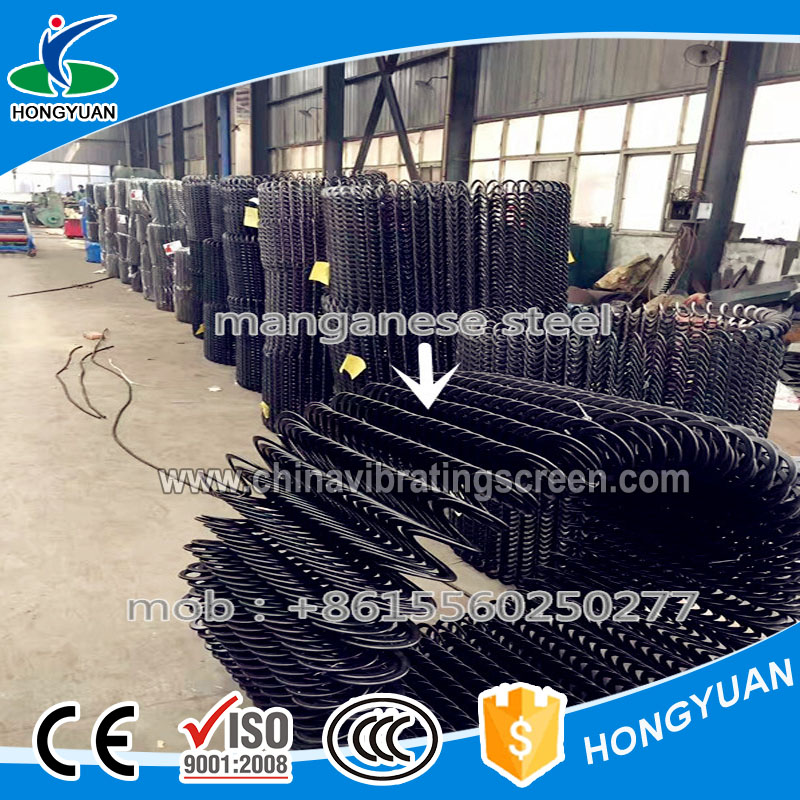

Materia:

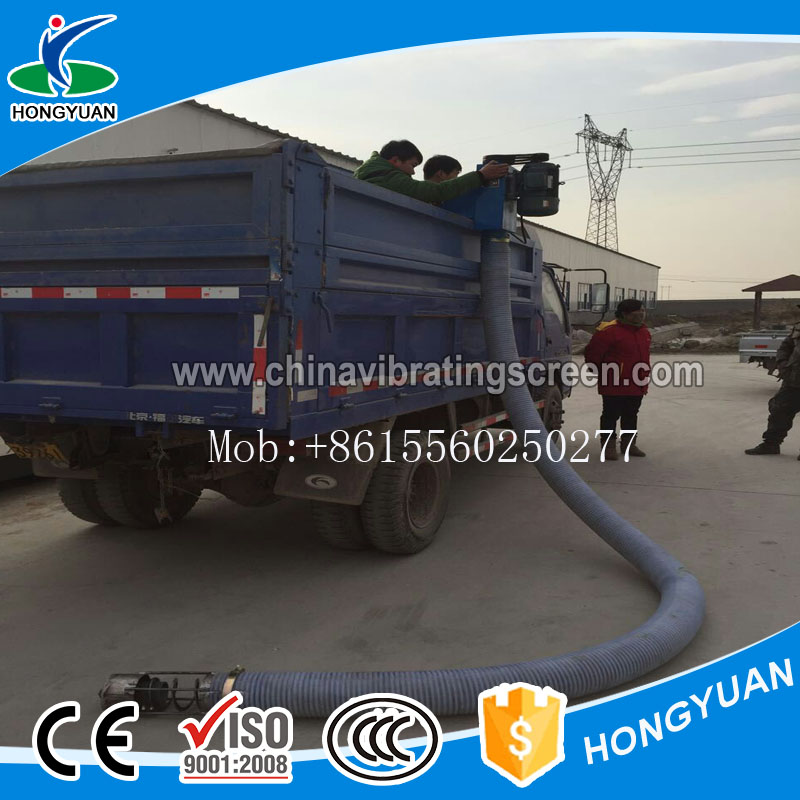

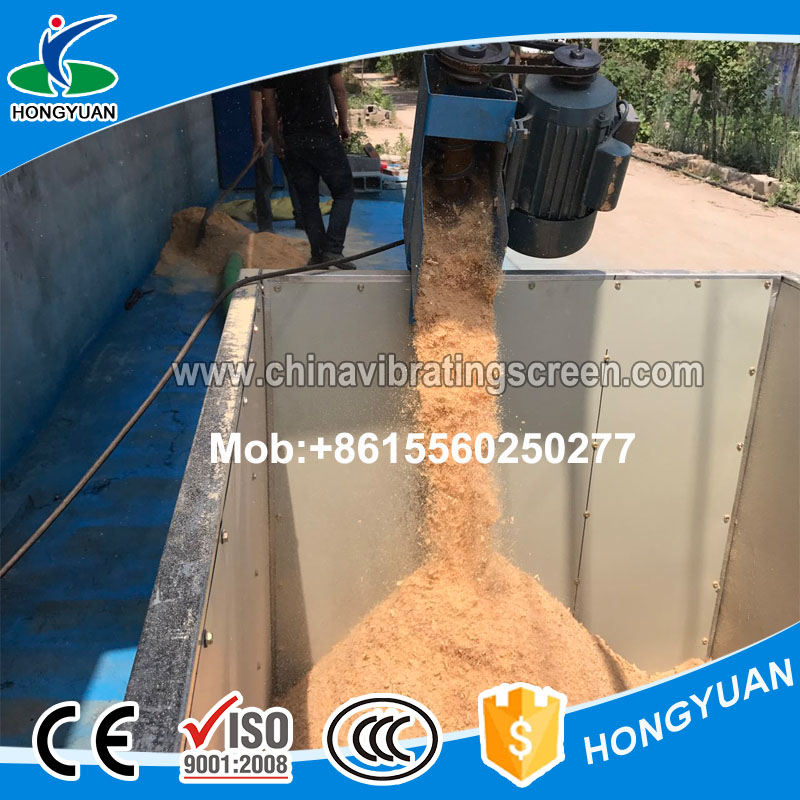

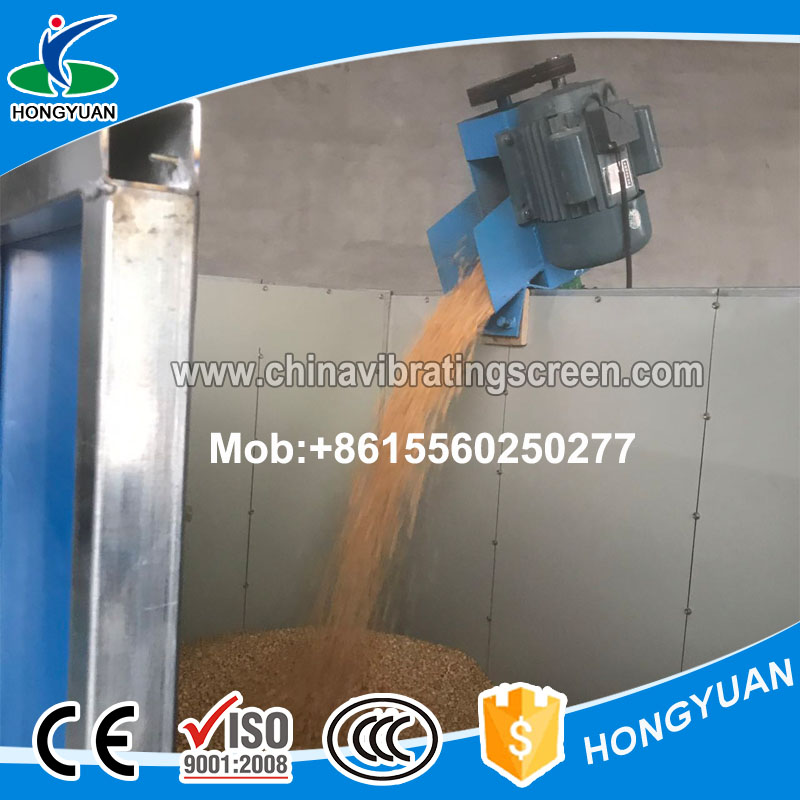

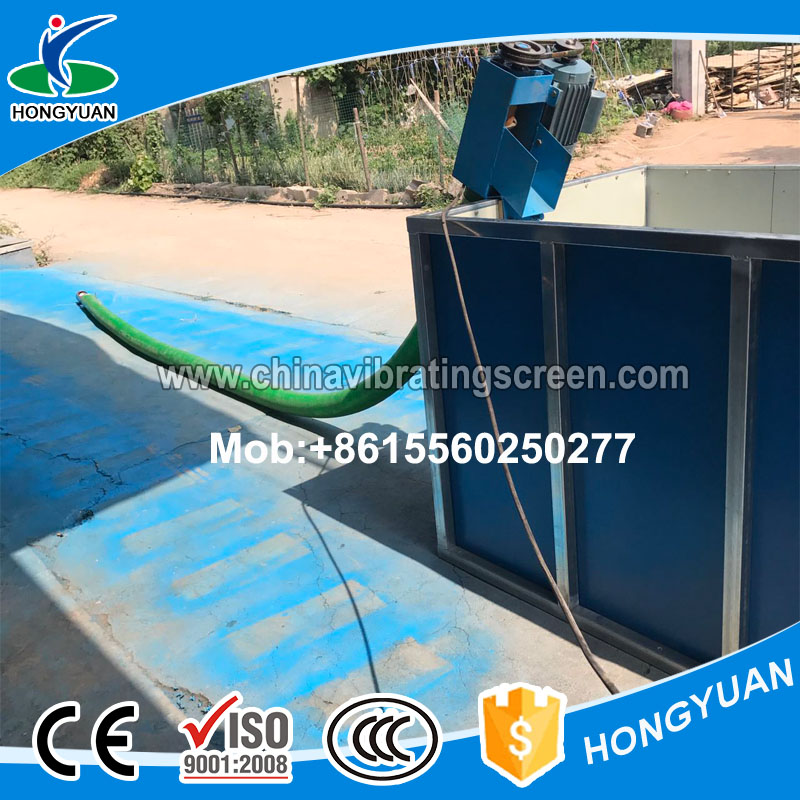

Product working:
There are some pictures and video.By watching video, we can understand the usage and effect of the machine.
Specification:
| Model No. | Length (Meters) | Pipe diameter | Loading Capacity(t/h) | Motor phase-power(kw) | Installation | Structure | Conveying height |
| XL-100-6 | 6 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-8 | 8 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-10 | 10 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-12 | 12 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-6 | 6 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-8 | 8 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-10 | 10 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-12 | 12 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
Test Running:
- According to the packing list by piece count, check the parts are complete after opened the box.
- When commissioning, the tube should try to keep nature, try to make the pipe smooth turning and to prevent wear pipe.
- When debugging, flexible screw conveyor machine should use the international 4 square power cord.

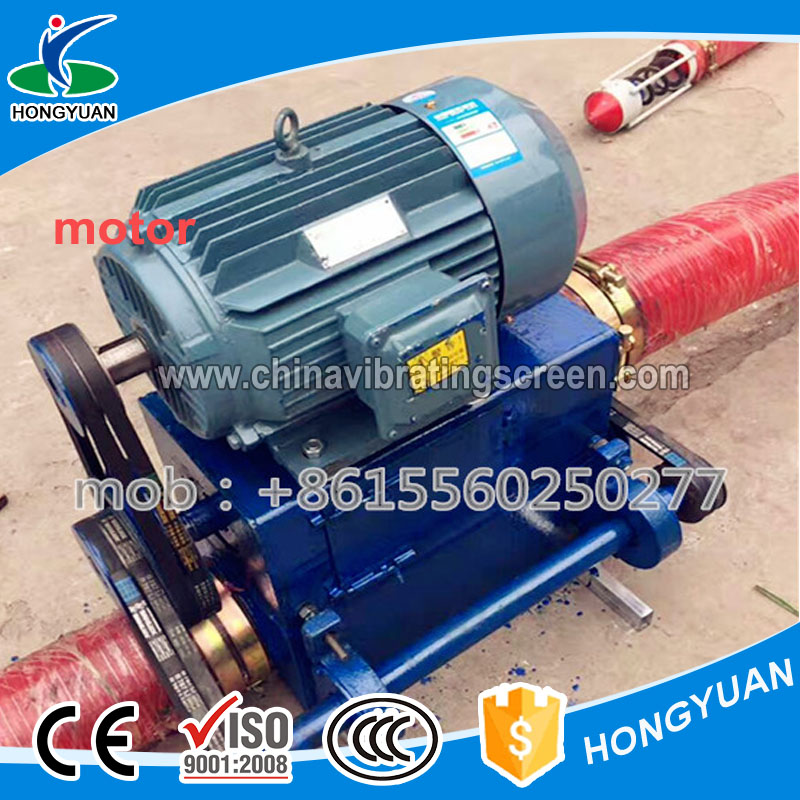

- When Installing the V-belt of motor, it should set the small wheel first, then set the big wheel.
- Don’t racing the engine while the machine working, to prevent wear the pipe.
- In the process of flexible screw conveyor machine installed to the truck, the machine head should be outward installation and then use the screw bolt to fix it.
- If the material clogging while working should immediately shut down, clean up and then restart.
- If the blade damaged in the process of using, you can use welding machine to weld.
Special Notes:
1.Three phase motor cannot reverse running.
2.Please do not let the machine running without loading.
3.Please do let the machine running with loading.
4. Please do not let the machine do the idling running.
Packing & Delivery:
Packing on Ply wooden Box
Packing Size:1200*1200*500mm
Gross Weight:180kgs
Related Product:
Name:seed cleaning machine
It is suitable for cleaning many kinds of grain seeds by replacing different screen mesh.
Name:grain cleaning and sieving machine
The cleaning rate could be 98%. It is the ideal machine for feeding farm which can separate the broken piece from the good soybeans and also can separate the mildew corn.
Please kindly tell us the following answers when you send us inquiry:
1. What kind of grain do you need to process?
2. What is your capacity per hour?
3. What is your local electricity?
