Vehicle mounted Electric spiral conveyor grain suction machine
Product Description
Vehicle mounted Electric spiral conveyor grain suction machine is a new designed for grain suction, entrucking, stack transfer and storage in village.
It has the features of small area, light weight, easy movable, high effeciency and low rate of brokage. the small suction machine is widely used for many places with safty
and relibality. such as individual farmer, grain professional farmers and agricultural cooperatives.
click through the images and view the video
Application
Vehicle mounted Electric spiral conveyor grain suction machine with soft tubes can transfer wheat, soybean, corn, rice, plastic and resin and so on. it can transfer horizationally or aslant.
Production site
Packaging & Shipping
Specifications for grain suction machin
| Model No. | Length (Meters) | Pipe diameter | Loading Capacity(t/h) | Motor phase-power(kw) | Installation | Structure | Conveying height |
| XL-100-6 | 6 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-8 | 8 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-10 | 10 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-12 | 12 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-6 | 6 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-8 | 8 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-10 | 10 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-12 | 12 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
Detailed Images

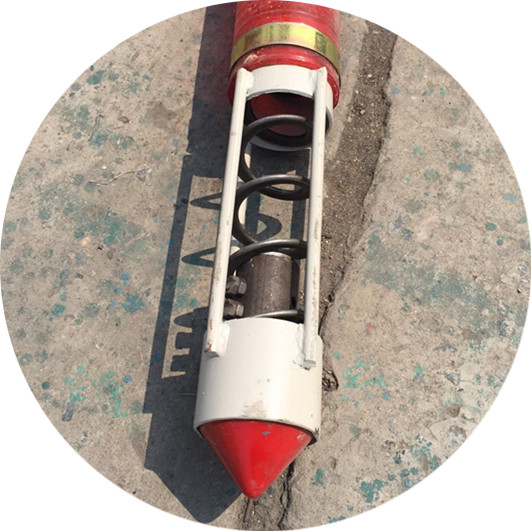

Inlet Tube
Outlet
Related Products

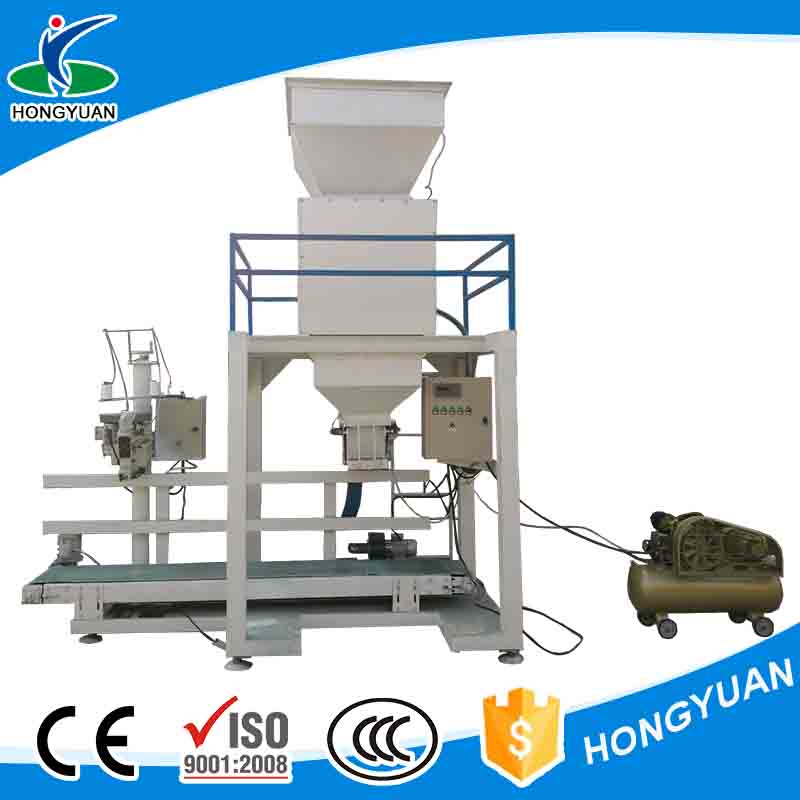

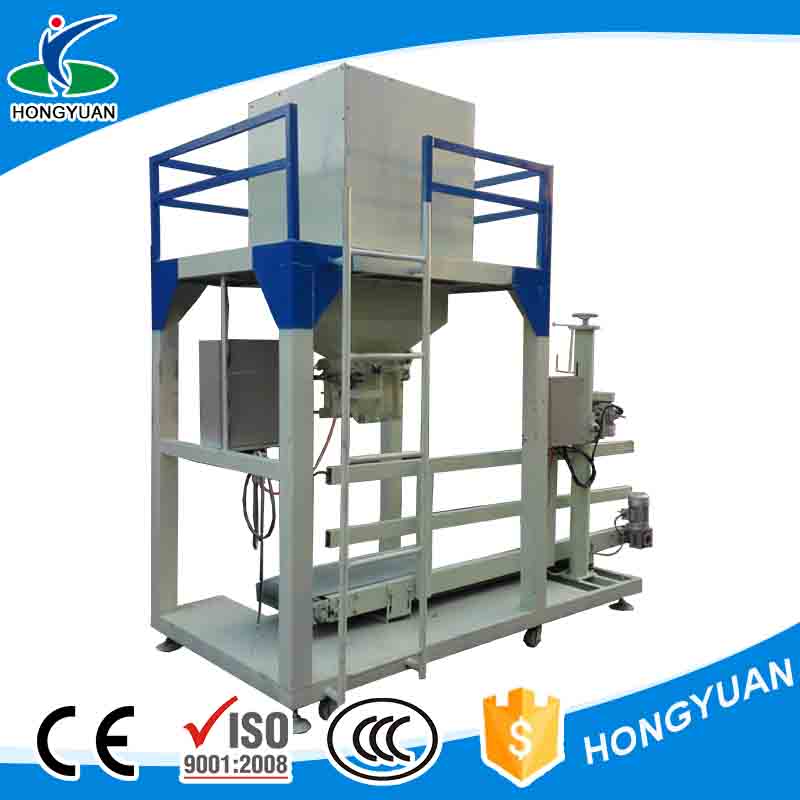

weighing and packing filling machine
