Light paperback handing and bagging granular items screw feeder
Products Application

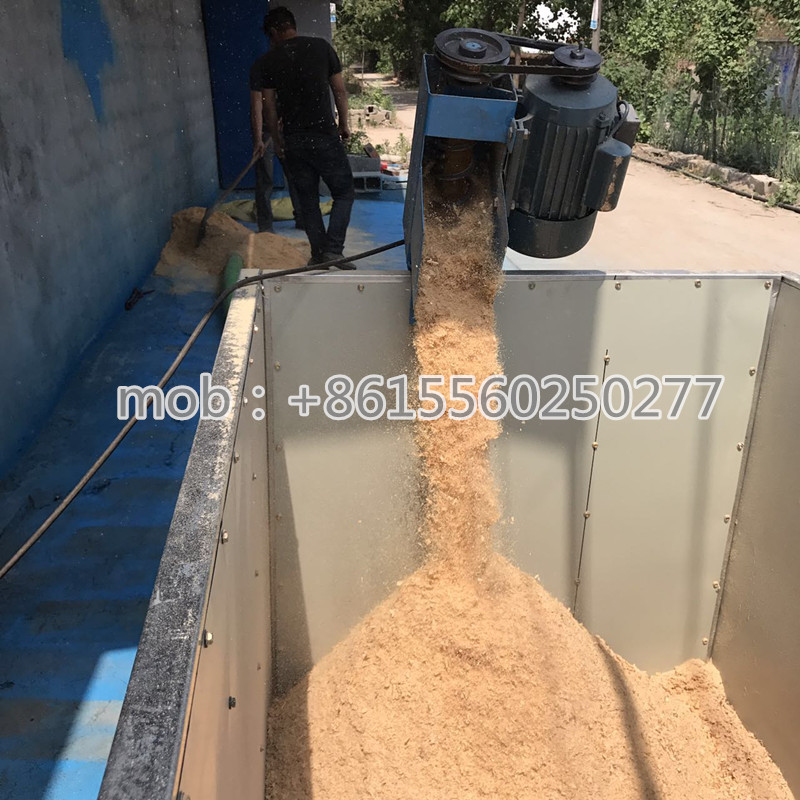

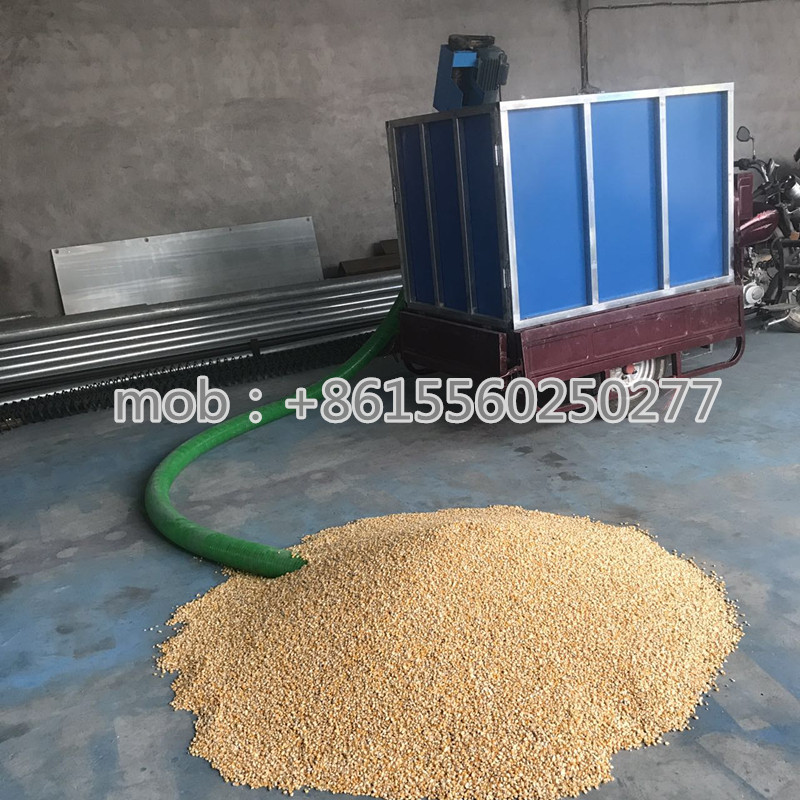

Light paperback handing and bagging granular items screw feeder is one kind of bulk grain conveyor adopt the motor power for truck loading and grain elevator purpose. With the feature of small cubage and easy to carry, it is universally used by the family farm. It is mainly applied for collecting of wheat, corn, paddy, cereal, and any other similar granules like dry sand, cement, sawdust etc. With single phase motor power, it can load the large capacity with low energy consumption and easy to use at home. This is adopt the latest advance starving varnish paint technology.
Working performance
Light paperback handing and bagging granular items screw feeder is easy to carry and operated and is one convenient portable grain inhaling suction equipment.
Specifications
| Model No. | Length (Meters) | Pipe diameter | Loading Capacity(t/h) | Motor phase-power(kw) | Installation | Structure | Conveying height |
| XL-100-6 | 6 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-8 | 8 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-10 | 10 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-100-12 | 12 | 100mm | 5-8 | Single phase -220V-3kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-6 | 6 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-8 | 8 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-10 | 10 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
| XL-160-12 | 12 | 160mm | 15-20 | Three phase -220V-4kw | Vehicle mounted | Steel screw blade inside | 3-4m |
Tip:

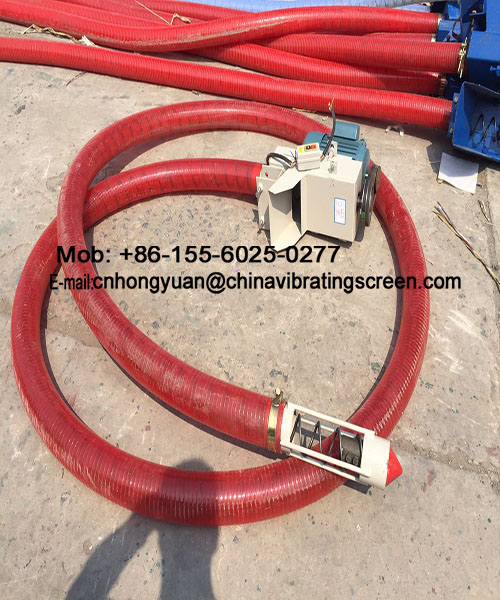

Detailed Images

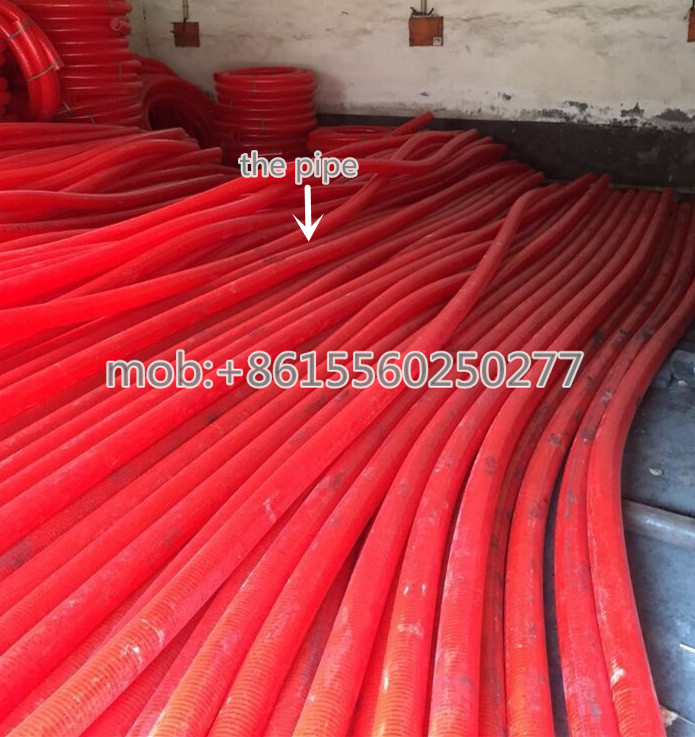

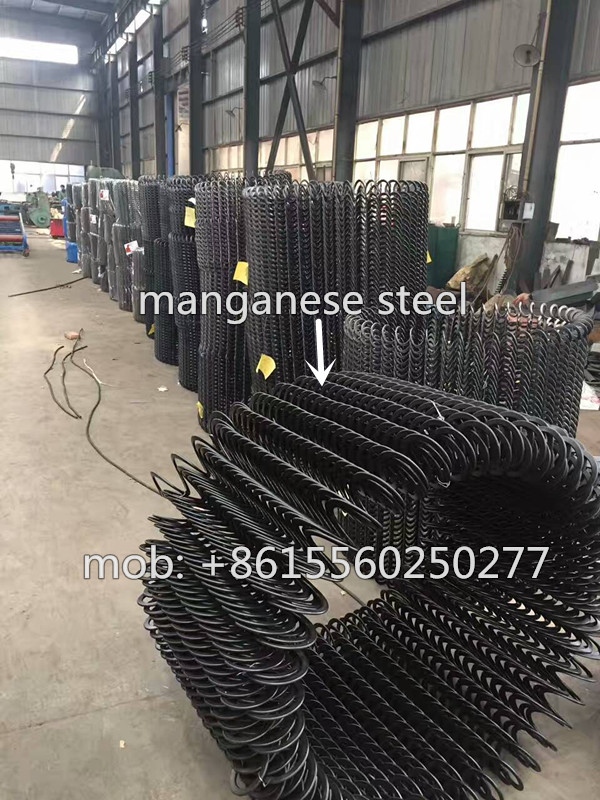

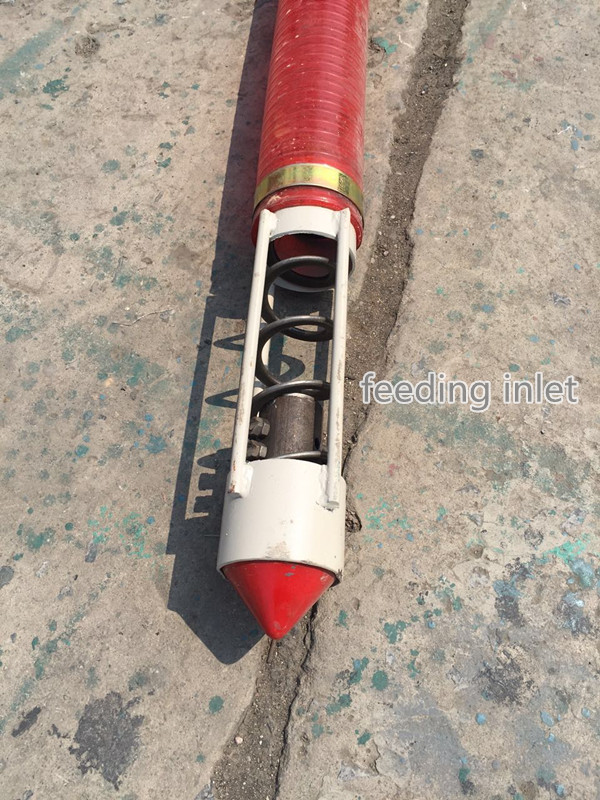

The pipe material is premium PVC material.The screw blade is manganese steel.Here you can have a different choice, even customization
Pilot Running
- According to the packing list by piece count, check the parts are complete after opened the box.
- When commissioning, the tube should try to keep nature, try to make the pipe smooth turning and to prevent wear pipe.
- When debugging, flexible screw conveyor machine should use the international 4 square power cord.
- When Installing the V-belt of motor, it should set the small wheel first, then set the big wheel.
- Don’t racing the engine while the machine working, to prevent wear the pipe.

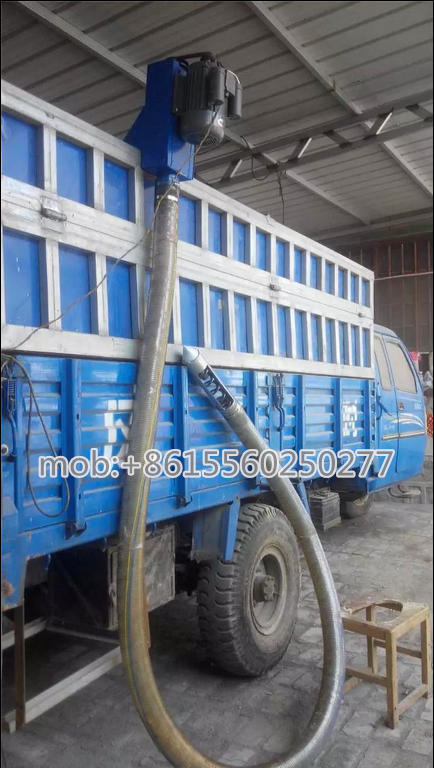

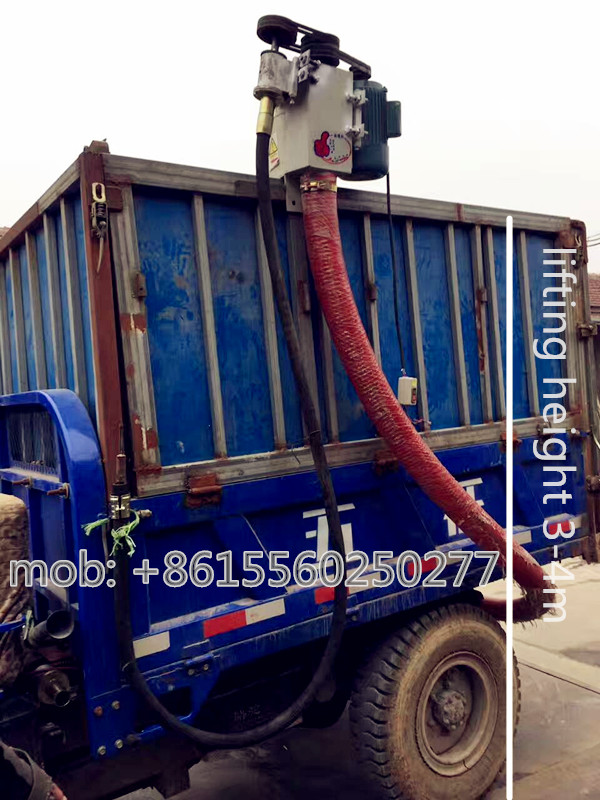

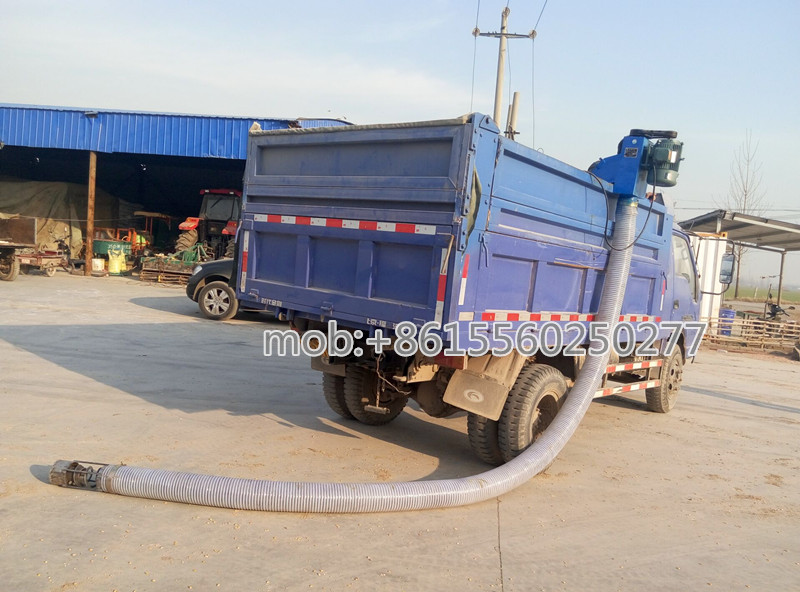

- In the process of flexible screw conveyor machine installed to the truck, the machine head should be outward installation and then use the screw bolt to fix it.
- If the material clogging while working should immediately shut down, clean up and then restart.
- If the blade damaged in the process of using, you can use welding machine to weld.
Special Notes
Please do not let the machine running without loading; Please do let the machine running with loading; Please do not let the machine do the idling running.
Packing & Delivery

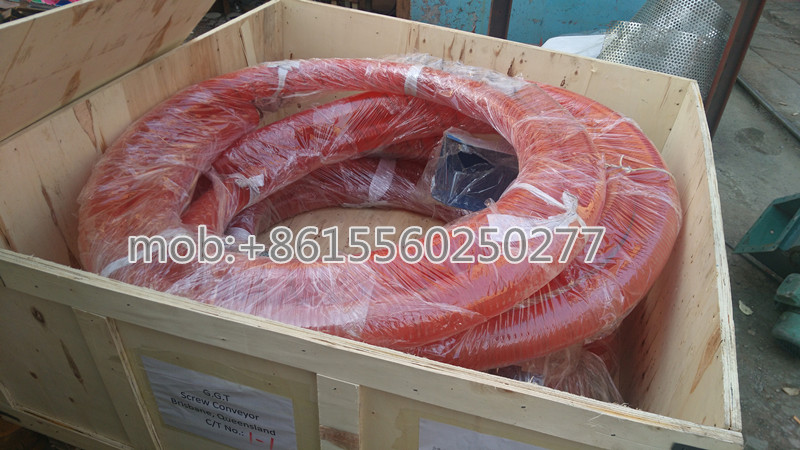

Packing in Plywooden Box
Packing Size:1200*1200*500mm
Gross Weight: 180kgs
Related Products
Please kindly tell us the following answers when you send us inquiry:
1. What kind of grain do you need to process?
2. What is your capacity per hour?
3. What is your local electricity?
